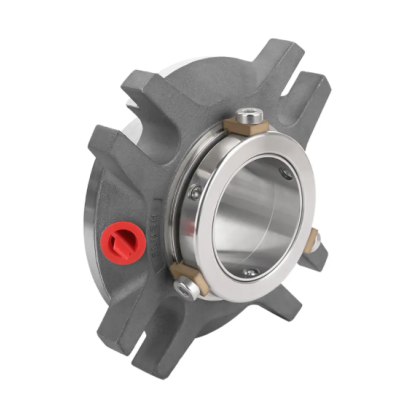

MMSS - HIGH PERFORMANCE SINGLE SEAL

Technical Features

• Stationary pusher cartridge seal.
• Unified sealing ring structure provides increased stability in demanding high-temperature and high-pressure environments.
• Expanded drive contact surface helps prevent sealing ring wear during equipment start-up and shutdown, particularly in applications involving viscous fluids.
• Withstands higher pressure and temperature limits, up to a maximum of 160°C, eliminating problems such as ring separation and end face displacement associated with traditional inlay processes.
• Supplied with a large-diameter 3/8" interface for shaft sizes above 35mm to optimise cooling performance.

Performance Capabilities

Shaft diameter - 1.000" to 4.000" (24mm–100mm)
Pressure - < 25 bar
Temperature - -20°C ~ +160°C
Sliding velocity - < 20 m/s

Applicable Chambers Type

• Compatible with ISO 2858 standard chambers as well as other compact chamber configurations.
• Modular cartridge design delivers high-performance sealing solutions for chemical applications.
• Equipped with flush, quench, and drain environmental ports.
• Available in sizes from 1.000" to 4.000" (24mm–100mm).

Typical Industrial Applications

• Chemical and process manufacturing
• Oil, gas, and energy sectors
• Water treatment and environmental protection
• Pharmaceutical and food & beverage industries
• Hazardous chemicals and specialised sectors
• Marine and offshore engineering

• Rotary face : SSIC / TIC
• Stationary face : Carbon / SSIC / TC
• O-rings : EPR / Viton / Aflas / Kalre
