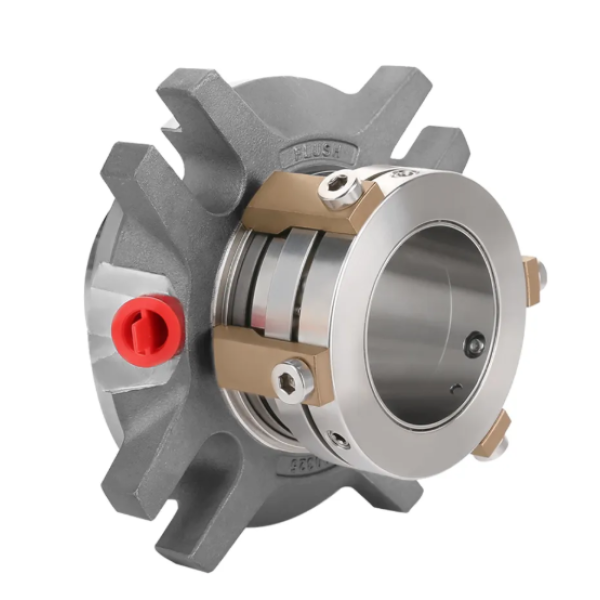

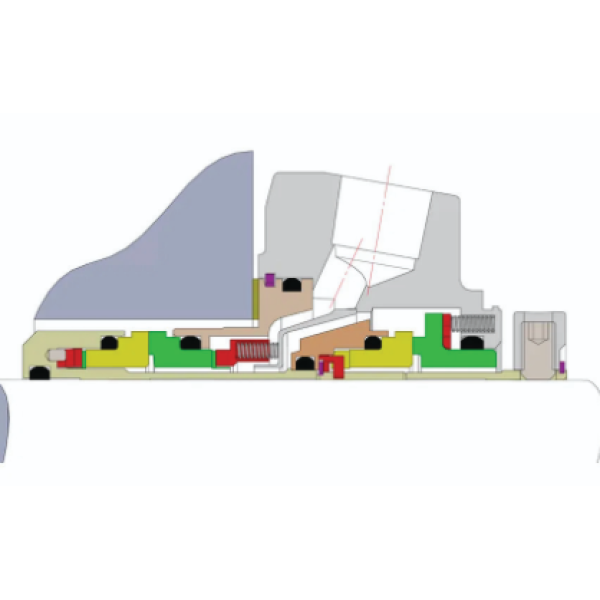

• Stationary pusher cartridge seal with a face-to-back
configuration.
• Double-balanced integral ring design offers superior resistance
to pressure fluctuations in the sealing chamber.
• Integrated bidirectional flow and a unique pump efficiency ring
ensure effective barrier liquid circulation.
• Withstands higher pressure and temperature limits, up to a
maximum of 160°C, eliminating problems like ring shedding and
end face displacement common with inlay processes
Shaft diameter - 1.000”to 4.000 (24mm- 100mm)
Pressure - < 25 bar
Temperature - -20°C ~ +160°C
Sliding velocity - < 20 m/s
• Modular cartridge design delivers high-performance
sealing solutions for chemical applications.
• Equipped with Buffer/Barrier In and Out
environmental ports.
• Available in sizes from 1.000" to 4.000"
(24mm–100mm)
• Chemical and petrochemical industries
• Oil, gas, and energy sectors
• Water treatment and environmental protection
• Pharmaceutical and food & beverage industries
• Hazardous chemicals and specialised sectors
• Marine and offshore engineering
• Rotary face : SSIC / TIC
• Stationary face : Carbon / SSIC / TC
• O-rings : EPR / Viton / Aflas / Kalrez
