Pressure: 10 bar
Temperature: -30 °C – 180 °C ( Nitrile )
Speed: 12 m/s

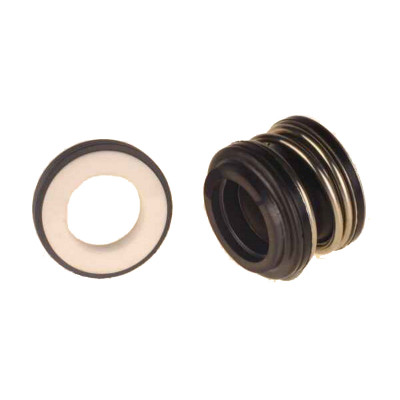

Type 60 Component Seals
Operating Limits
Faces
Carbon vs Ceramic
Silicon vs Silicon on request
Elastomer
Supplied in Nitrile as standard
Viton available on request
| SIZE | d1 | d3 | d7 | L1 | L3 |
| 3/8” | 9,5 | 23,8 | 22,2 | 22,2 | 6,2 |
| 1/2” | 12,7 | 27,0 | 25,4 | 22,8 | 6,2 |
| 5/8”P | 15,9 | 30,9 | 30,1 | 26,5 | 8,7 |
| 5/8”R | 15,9 | 30,9 | 31,8 | 30,0 | 10,3 |
| 3/4” | 19,1 | 34,1 | 34,9 | 30,0 | 10,3 |
| 1” | 25,4 | 42,9 | 41,3 | 31,7 | 11,1 |
